C-Series Grills

Coyote Outdoor Living’s C-Series grills are built to suit grillers of all types. For homeowners with more space, Coyote’s C2C36 is a terrific option, providing an ample 875 sq. in. of grilling space and featuring four high performance Coyote cast stainless steel Infinity Burners™. All of our C-Series grills come standard with interior lighting for day or nighttime outdoor culinary pursuits.

What's Included

• 36" C-Series 4-Burner Built-In Liquid Propane Grill

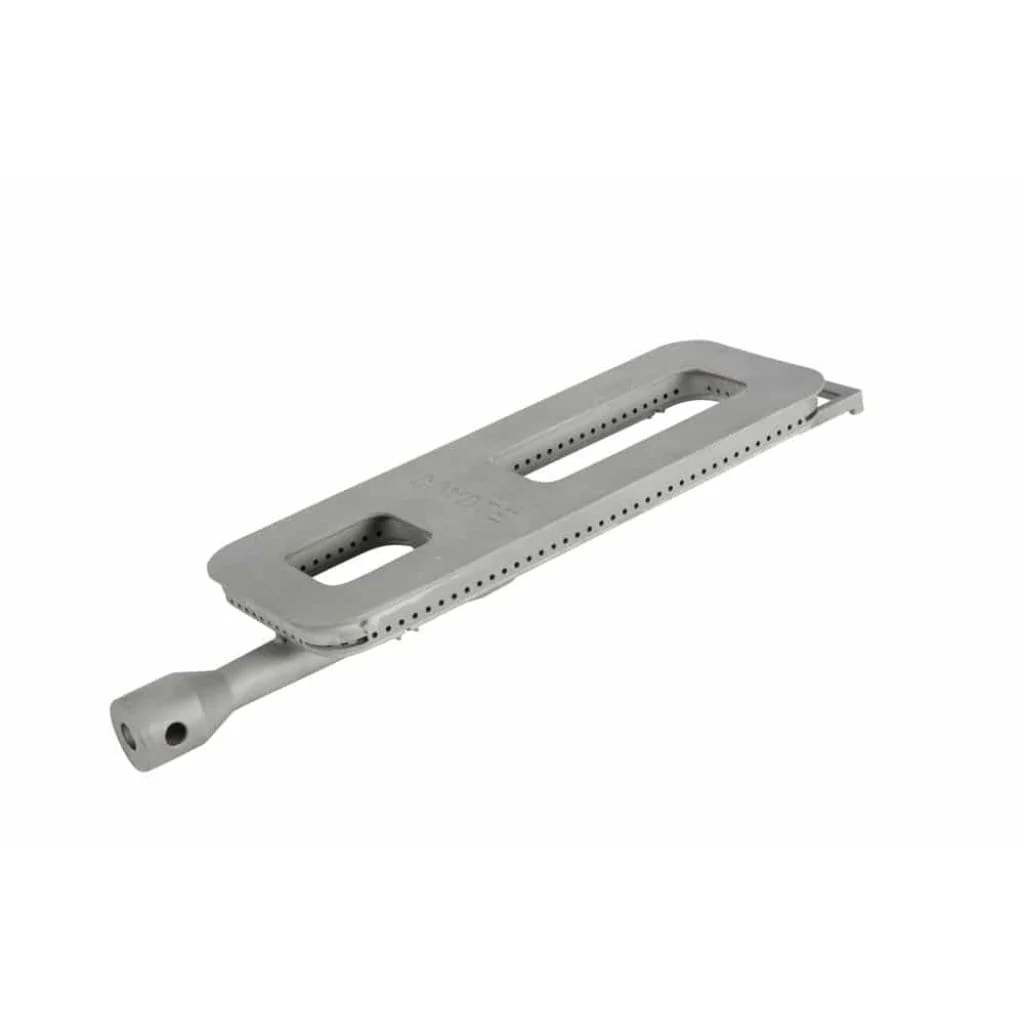

• 4 x High-Performance Coyote Cast SS Infinity Burners
• 1 x Hood Handle
• 2 x Handle Fixing (Left & Right)
• 1 x Thermometer
• 1 x Thermometer Base
• 1 x Hood
• 2 x Rubber Stopper
• 2 x Hood Connector Hardware
• 2 x Light
• 1 x Lower Hood
• 2 x Warming Bracket (Left & Right)
• 1 x Warming Rack
• 1 x Firebox
• 1 x Grate - 19 Bar
• 1 x Grate - 20 Bar
• 4 x Flavorizer
• 1 x Flavorizer Bracket
• 1 x Firebox Bottom Cover
• 1 x Control Panel
• 1 x LP Gas Pipe
• 4 x Standard Valve LP
• 1 x Light Switch
• 1 x 4-Burner Light Wire
• 4 x Knob Base
• 1 x Drip Tray
• 1 x Drip Tray Front Bar
• 4 x Knob
• 1 x Logo Badge
• 1 x Gas Pipe Clamp
• 1 x Transformer
• 1 x LP Regulator
• 2 x Drip Tray Wheel
• 1 x Heat Resistance Barrier
• 2 x Ventilation Cover
• Owner's Manual

Not Included (Sold Separately)

• Grill Cart
• Single Side Burner

• Insulated Jacket

• Vinyl Cover

• Rotisserie Kit

• Wind Guard

• Conversion Kit

• Cooking Grate

• Charcoal Tray

• Ceramic Briquette

• Island Vent

• Smoker Box

• Drop-In Griddle

Features

• Premium Fit and Finish:
• Premium 304 Stainless Steel Construction
• Double-walled Stainless Steel Hood
• Corrosion and Color-fade Resistant
• Ergonomic Handle
• Nickel Alloy Knobs
• Full Attention to all Finish Details
• Limited Lifetime Warranty on the Housing and the Burner
• Large Cooking Area on all Grill Models
• Fuel Efficient Cast Stainless Steel Infinity Burners and Premium Grates
• Warming Rack and Performance Enhancing Heat Control GridsTM – Included on all Grill Models
• Interior Lights, Temperature Gauge, Electronic Ignition, and Removable Drip Tray - Included on all Models
• Independent Burner Ignition
• Grill Carts
• Commercial Grade

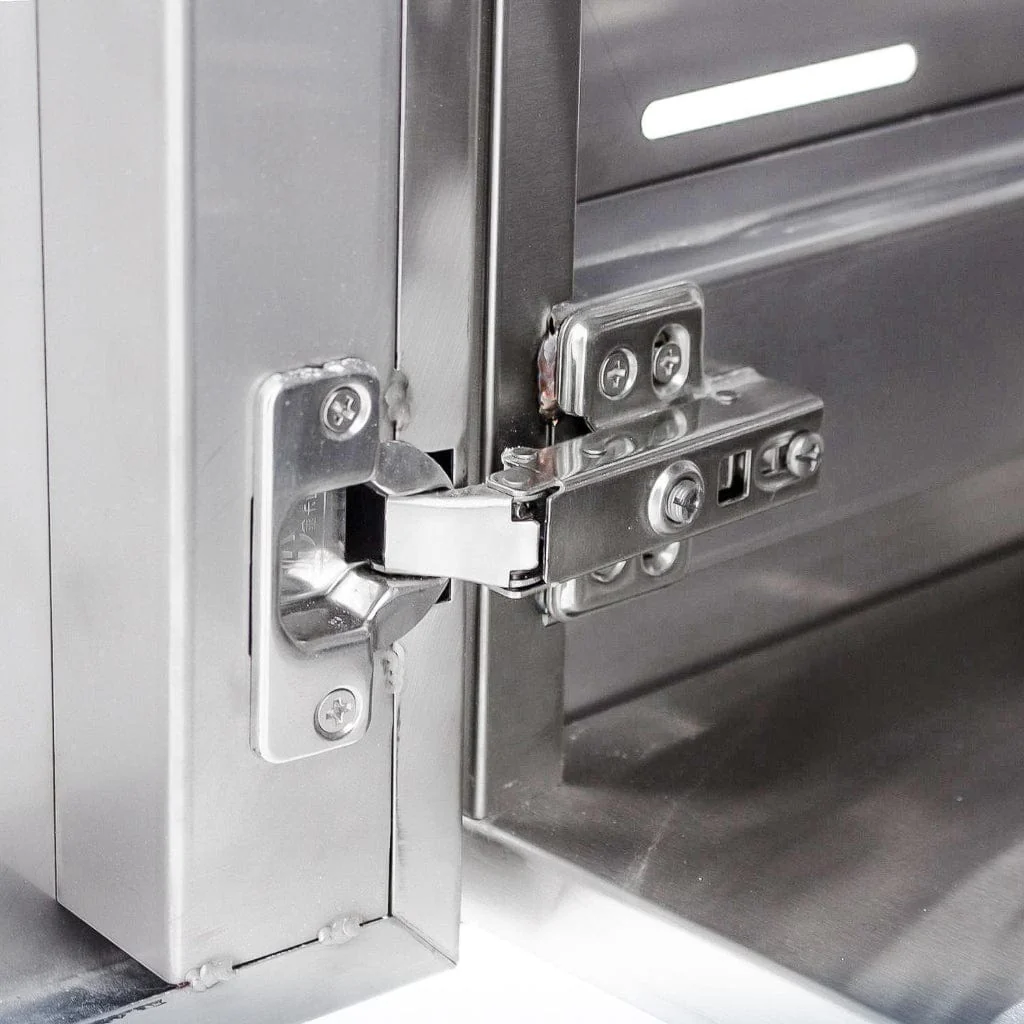

• Self Closing Cabinets/Drawers – Pre-assembled
• Two individually and accurately controlled heat zones
• Heavy gauge food grade cooking surface allows for even heating and easy cleaning
• LED light safety feature indicates when gas supply is on or off
• Includes stainless steel cover for cooking surface
• Removable grease trap easy accessible
• Available as a built-in or freestanding
• Interior grill lighting / stainless steel heat control grids
• Optional wind guard
• Two High Performance Coyote Cast SS Infinity Burners
• Interior Hood Lights

Specifications

Model	C2C36
UPC	653341983305
Brand Name	Coyote Outdoor Living
Fuel Type	Liquid Propane
Installation Type	Built-In
BTU	80,000
Cooking Area	875 sq. in.
Material	304 Stainless Steel
Cutout Dimensions	32 1/2 (W) x 20 1/2” (D) x 10 1/4” (H)
Overall Dimensions	35 1/2” (W) x 25 1/2” (D) x 23” (H)
Regulator	20 lb Tank Regulator
WC Pressure	11"
Max PSI	.5 PSI
Electrical Requirements	Qty 1 - 120 VAC 60 Hz Grounded Plug

Technical Drawings and Dimensions

Warranty

	Limited Lifetime Warranty Stainless Steel Burners (no rust or burn-through); Stainless Steel Frame/Housing
	5 years (Limited) Cooking Grids (no rust or burn-through)
	2 years (Limited) Heat Control Grid (no rust or burn through); Electric/Plastic Components
	1 year (Limited) Ignition Systems/Valves
